Color
Natural
Orientation
Right-Hand
Product Name

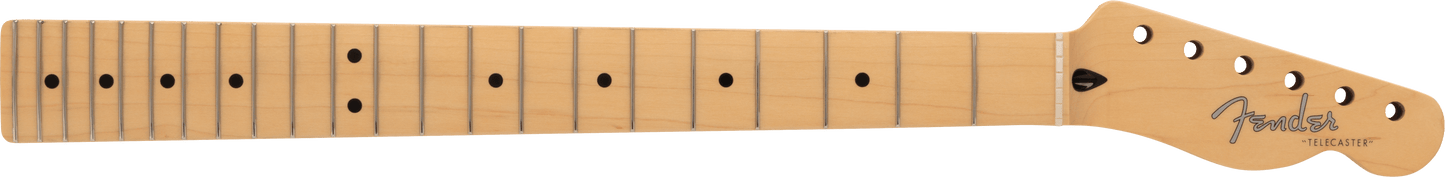

Made in Japan Hybrid II Telecaster® Neck, 22 Narrow Tall Frets, 9.5" Radius, C Shape, Rosewood
Series
Necks
Made in Japan Hybrid II Telecaster® Neck, 22 Narrow Tall Frets, 9.5" Radius, C Shape
Regular price
¥49,500
Regular price
¥49,500
¥49,500
Sale price
Unit price
per
inc. VAT*
Made in Japan Hybrid II Telecaster® Neck, 22 Narrow Tall Frets, 9.5" Radius, C Shape
Made in Japan Hybrid II Telecaster® Neck, 22 Narrow Tall Frets, 9.5" Radius, C Shape
Regular price
¥49,500
Regular price
¥49,500
¥49,500
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Details
Summary
Overview
Fusing Fender's traditional aesthetics with sophisticated Japanese craftsmanship the made in Japan Hybrid II series necks offer the sought after and iconic feel of Fender MIJ instruments.
Crafted in the same facility as the Made in Japan series instruments, the Hybrid II Telecaster Neck features a modern “C” shape and incorporates a flatter 9.5" radius and 22 narrow tall frets on a rosewood or maple fingerboard. A satin urethane finish provides smooth feel for modern playability.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.
Overview
Features
- Modern "C" shape
- 9.5" radius rosewood or maple fingerboard
- 22 narrow-tall frets
- Satin urethane finish
- Notched bone nuts
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
9.2 mm
Scale Length
25.5" (648 mm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .800" (20.4 mm), 12th Fret - .900" (23.4 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
5 mm Hex
General
Color
Natural
Orientation
Right-Hand
Product Name
Made in Japan Hybrid II Telecaster® Neck, 22 Narrow Tall Frets, 9.5" Radius, C Shape, Maple
Series
Necks
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
9.2 mm
Scale Length
25.5" (648 mm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
Satin Urethane with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .800" (20.4 mm), 12th Fret - .900" (23.4 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
5 mm Hex
